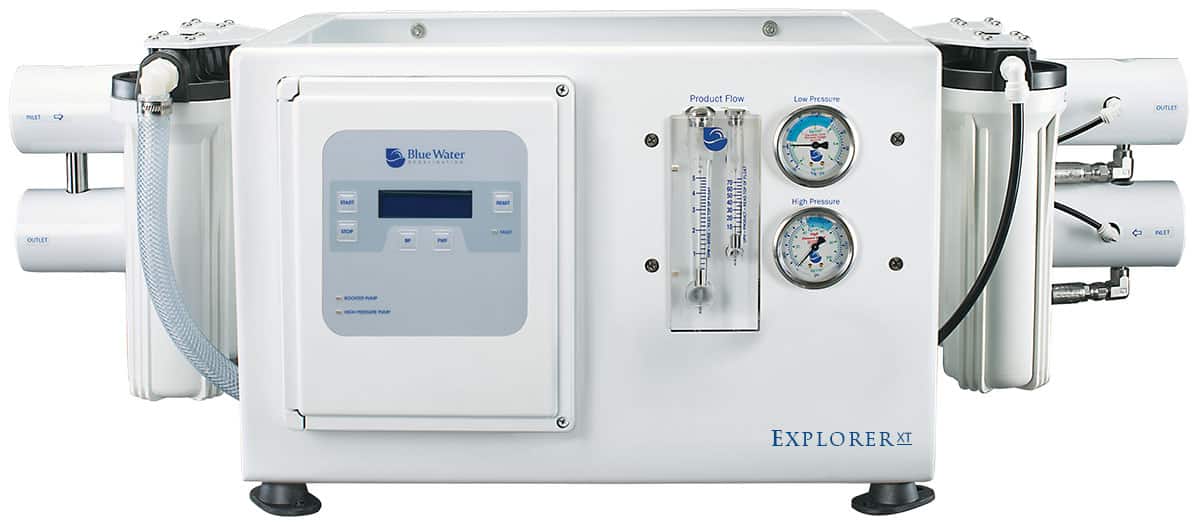

Explorer XT Series
Available capacities range from 475 GPD to 1,800 GPD (1,800 LPD to 6,810 LPD)
The Blue Water Desalination Explorer XT series watermakers feature fully automatic operation with capacities up to 75 gallons per hour (284 liters per hour). The Explorer XT is a robust, expandable system designed for mid-sized to large yachts. Three different configurations ensure that the installation can be customized to fit almost any available space.
- Fully-Automatic Operation
- Fresh Water Flush system
- High Rejection membranes
- Product water Carbon filter
- Dual voltage 50/60 Hz motors
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance
- Installation kit including bronze sea strainer
- No charge upgrade to Commercial Pre-filter
- One-touch operation
- Simple controller with digital display
- Optional remote control
- Low-pressure safety switch
- High-Pressure monel transducer
- Available in both compact frame and modular component style configurations
- Adjustable FWF interval up to 10 days
Explorer XT Compact
Explorer XT
Compact
Explorer XT Compact
Explorer XT
Compact
Explorer XT Compact
Explorer XT
Compact
Explorer XT Modular Controller
Explorer XT
Modular Controller
Explorer XT Modular Controller
Explorer XT
Modular Controller
Explorer XT Modular Controller
Explorer XT
Modular Controller
Watermaker Membrane
Watermaker Membrane
Fresh Water Flush
Fresh Water Flush
Modular Controller
Modular Controller
Explorer XT Modular Pressure Gauges
Explorer XT
Modular Pressure Gauges
Explorer XT Modular Pressure Gauges
Explorer XT
Modular Pressure Gauges
| Model # | No. of Membranes | Production / hour | Production / 24 hour | Weight (lbs. / kg.) |
|---|---|---|---|---|
| EPX1 475-1 | 1 | 20 Gal / 75 L | 475 Gal / 1,800 L | 160 / 73 |
| EPX1 750-1 | 1 | 31 Gal / 118 L | 750 Gal / 2,840 L | 170 / 77 |
| EPX1 950-1 | 1 | 40 Gal / 150 L | 950 Gal / 3,600 L | 180 / 82 |
| EPX1 950-2 | 2 | 40 Gal / 150 L | 950 Gal / 3,600 L | 195 / 88 |
| EPX1 1200-2 | 2 | 50 Gal / 189 L | 1,200 Gal / 4,540 L | 210 / 95 |
| EPX1 1500-2 | 2 | 63 Gal / 237 L | 1,500 Gal / 5,680 L | 210 / 95 |
| EPX1 1800-2 | 2 | 75 Gal / 284 L | 1,800 Gal / 6,810 L | 225 / 102 |
| Model Phase | Booster Pump HP | kW |
HP Pump HP | kW |
Voltage | Run Amps | Start Amps |
|---|---|---|---|---|---|
| Single | 0.5 / 0.37 | 2.5 / 1.8 | 110 / 220 | 31.0 / 15.5 | 109 / 55 |
| Three | 0.5 / 0.37 | 3.0 / 2.2 | 208 / 330 | 10.6 / 8.9 | 37 / 36 |
Explorer XT Model Standard Features
- Product Brochure (pdf)
- Booster Pump (pdf)
- Fresh Water Flush (pdf)
Explorer XT Compact Full Frame
Explorer XT Modular
- Explorer XT Modular (pdf)
Explorer XT Semi-Modular
- Explorer XT Semi-Modular (pdf)
Explorer XT Model Optional Equipment
- 10″ Dual 5-20 Micron Filter (pdf)
- 10″ Carbon Filter (pdf)
- Media Filter Assembly 5 GPM (optional)Â (pdf)
- Commercial Pre-Filter (optional)Â (pdf)
- Oil/Water Separator (optional)Â (pdf)
- Remote Display (optional)Â (pdf)
- UV Sterilizer (optional)Â (pdf)
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses
- Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
- Commercial Pre-Filter 20 Micron – Provides step down filtration to extend the life of the primary 5 micron filter
- Oil Water Separator Assembly – Removes oil from feed water
- Media Filter – Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- Touch Pad Remote with Bezel – With 75 ft. cable
- Touch Pad Remote with Bezel – With 100 ft. cable
- Touch Pad Remote with Bezel – With 150 ft. cable
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
