Express XT DC Series
Available capacities range from 200 GPD to 600 GPD (760 LPD to 2,270 LPD)
The Blue Water Express XT DC series watermakers feature automatic operation with capacities up to 25 gallons per hour (95 liters per hour). Designed to fit into tight spaces of small and mid-sized yachts, the Express XT DC is ideal for applications in today’s cruising yachts that rely solely on DC power while away from the marina.
- Fully Automatic Operation
- Fresh Water Flush system
- High Rejection membranes
- Product water Carbon filter
- Quiet and reliable high pressure pumps
- Designed for ease of service & maintenance
- Installation kit including bronze sea strainer
- No charge upgrade to Commercial Pre-filter
- One-touch operation
- Simple controller with digital display
- Available in 12V, 24V & 48V DC
- Optional remote control
- Low-pressure safety switch
- High-Pressure monel transducer
- Available in both compact frame and modular component style configurations
- Adjustable FWF interval up to 10 days
Express XT Compact
Express XT
Compact
Express XT Compact
Express XT
Compact
Express XT Compact
Express XT
Compact
Express XT Modular Controller
Express XT
Modular Controller
Express XT Modular Controller
Express XT
Modular Controller
Express XT Modular Controller
Express XT
Modular Controller

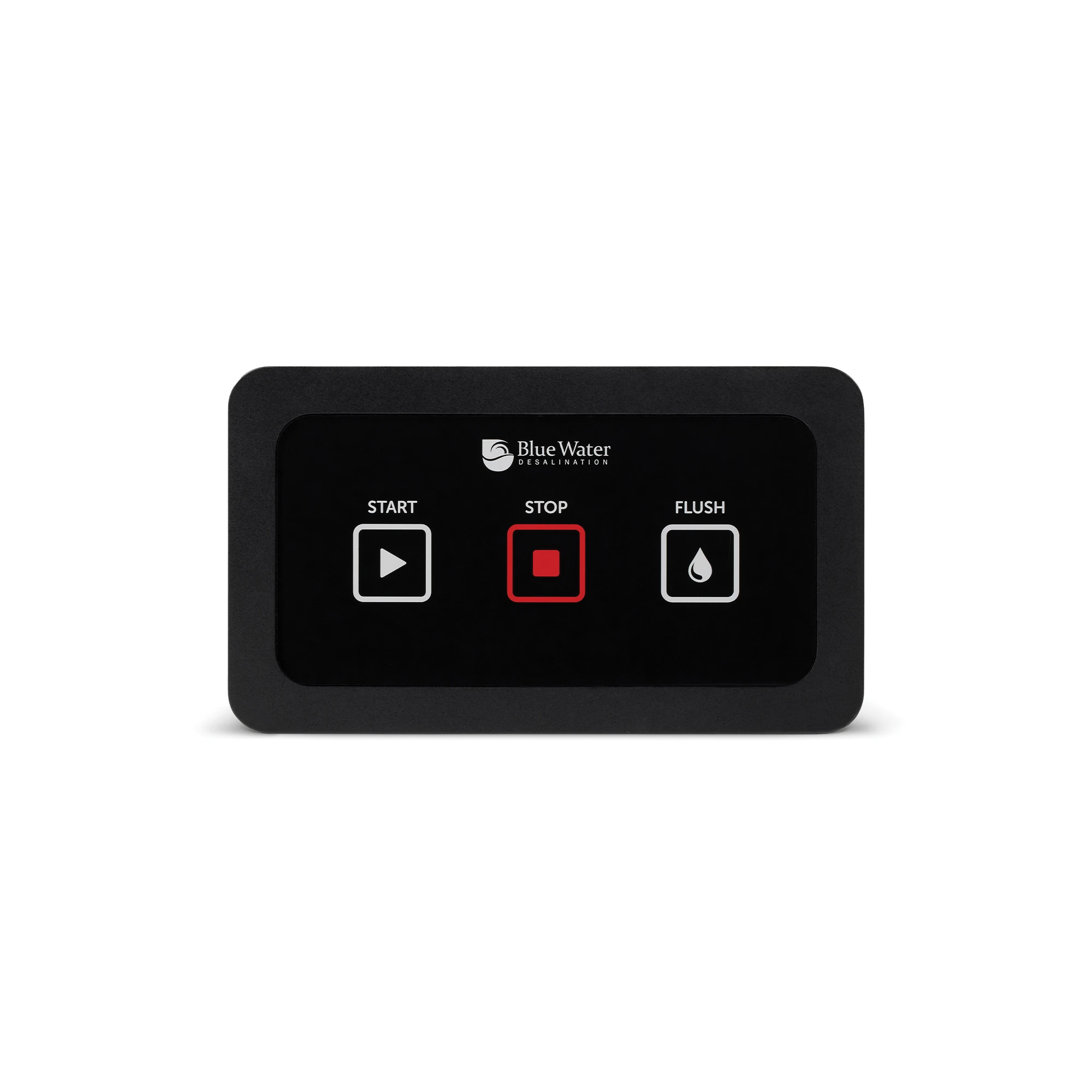

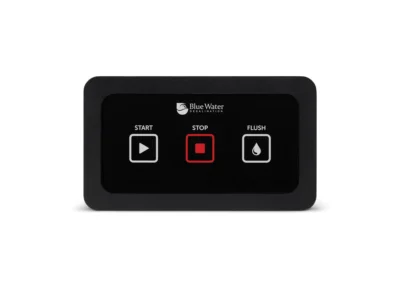

Optional Touchpad Remote
Optional Touchpad Remote
Booster Pump
Booster Pump
High Pressure Pump
High Pressure Pump
UV Sterilizer
UV Sterilizer
Fresh Water Flush
Fresh Water Flush
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses
- Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
- Commercial Pre-Filter 20 Micron – Provides step down filtration to extend the life of the primary 5 micron filter
- Oil Water Separator Assembly – Removes oil from feed water
- Media Filter – Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- Touch Pad Remote with Bezel – With 75 ft. cable
- Touch Pad Remote with Bezel – With 100 ft. cable
- Touch Pad Remote with Bezel – With 150 ft. cable
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
| Model # | No. of Membranes | Production / hour | Production / 24 hour | Weight (lbs. / kg.) |
|---|---|---|---|---|
| EX XT DC 200 | 1 | 8 Gal / 32 L | 200 Gal / 760 L | 130 / 59 |
| EX XT DC 360 | 1 | 15 Gal / 57 L | 360 Gal / 1,360 L | 135 / 61 |
| EX XT DC 600 | 1 | 25 Gal / 95 L | 600 Gal / 2,270 L | 140 / 64 |
| Model # | Feed Flow GPM |
Booster Pump |
HP Pump HP | kW |
Run Amps 12V / 24V / 48V |
|---|---|---|---|---|
| EX XT DC 200 | 0.5 | 0.10 | 0.075 | 0.33 | 0.25 | 34 / 17 / 8.5 |
| EX XT DC 360 | 1.0 | 0.10 | 0.075 | 0.75 | 0.56 | 66 / 33 / 16.5 |
| EX XT DC 600 | 1.5 | 0.10 | 0.075 | 1 | 0.75 | 88 / 43 / 22 |
Express XT DC Model Standard Features
- Product Brochure (pdf)
- Fresh Water Flush (pdf)
Express XT DC Compact
- Express XT DC Compact Frame (pdf)
Express XT DC Modular
- Express XT DC Modular Control Panel (pdf)
- 10″ Dual 5-20 Micron Filter (pdf)
- 10″ Carbon Filter (pdf)
- 360 GPD Membrane (pdf)
- 600 GPD Membrane (pdf)
Express XT DC Model Optional Equipment
- Media Filter Assembly 5 GPM (optional)Â (pdf)
- Commercial Pre-Filter (optional)Â (pdf)
- Oil/Water Separator (optional)Â (pdf)
- Remote Display (optional)Â (pdf)
- UV Sterilizer (optional)Â (pdf)
- Booster Pump – 48V (optional) (pdf)
