Express Series
Available capacities range from 360 GPD to 800 GPD (1,360 LPD to 3,030 LPD)
The Blue Water Express series of watermakers is designed to fit into the tight spaces of small and mid-sized yachts. These systems offer semi-automatic operation utilizing traditional switches and a manual high-pressure valve. An electronic controller automatically diverts product water to the storage tank and LED lights to indicate product water salinity and system status. The Express series includes Fresh Water Flush system as standard.
- Fresh Water Flush system
- High Rejection membranes
- Quiet and reliable high-pressure pumps

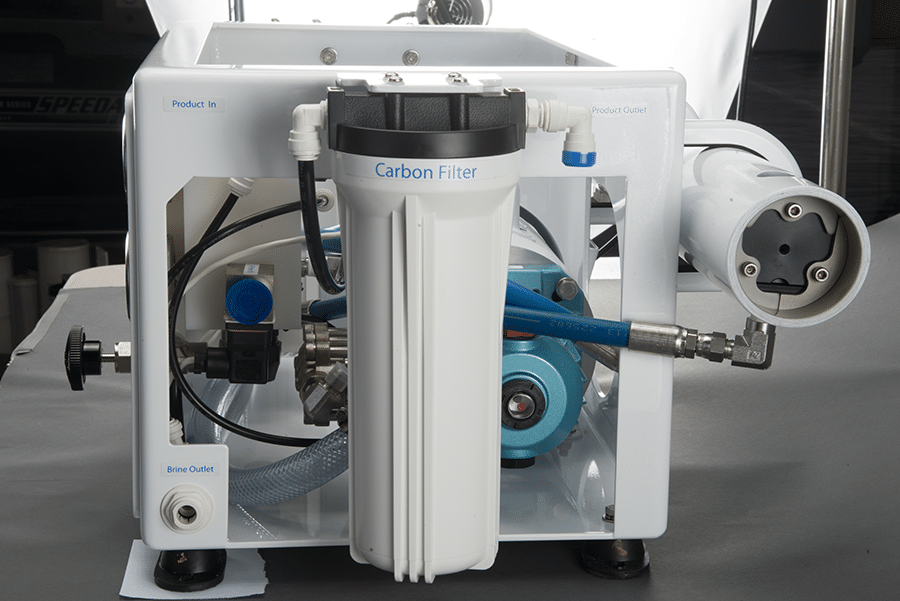

- Product water Carbon filter
- Dual voltage 50/60 Hz motors
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance
- Installation kit
- Optional Magnetic Drive Booster Pump available to lower overall start and run amp draw (360 GPD only)
- Semi-Automatic operation
- Simple controller with LED indicators
- Optional remote control
- Compact design
- Easy operation
- High and low-pressure safety switches
- Available in both compact frame and modular component style configurations

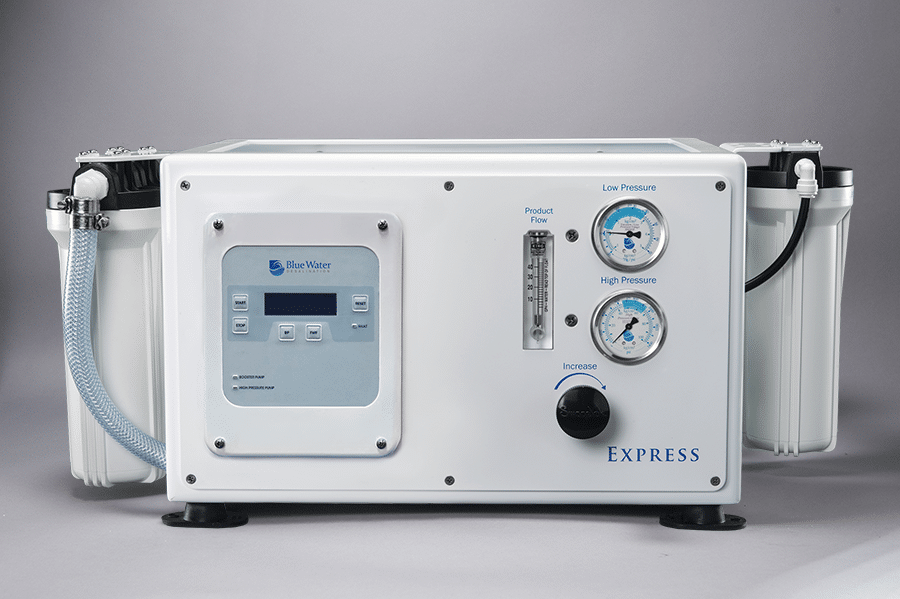

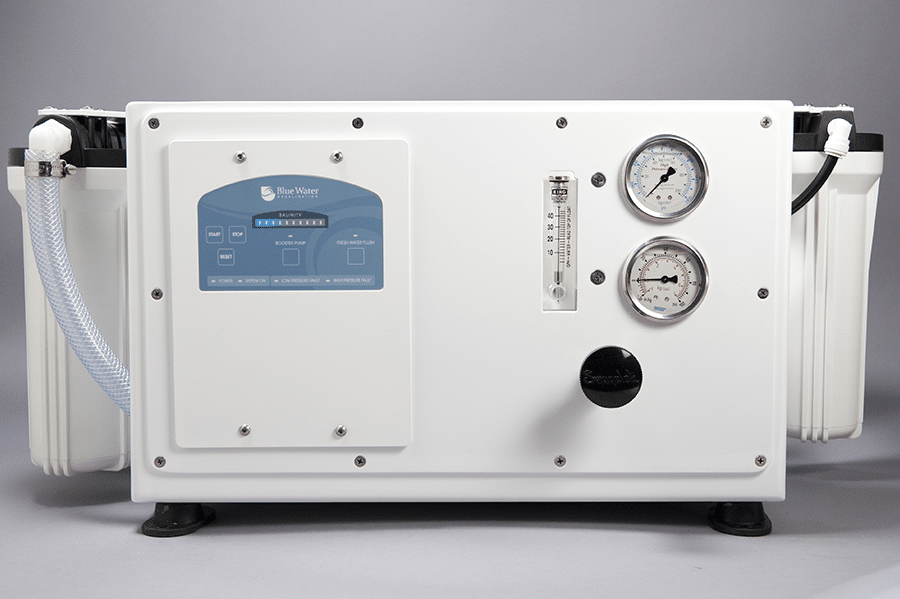

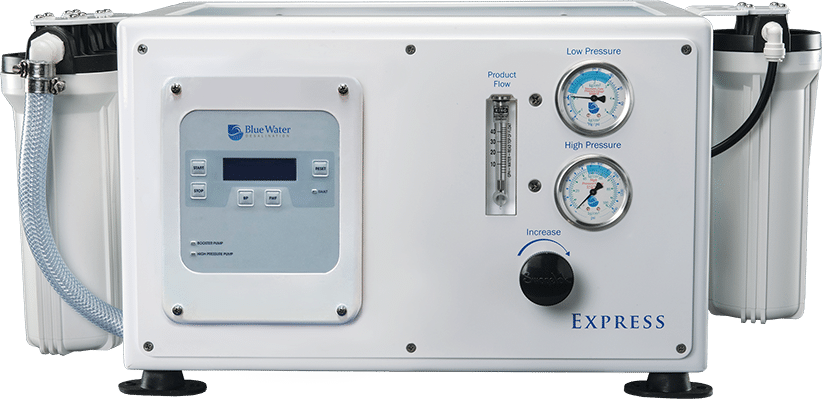

Express Watermaker
Express
Compact
Express Watermaker
Express
Compact
Express Watermaker
Express
Compact

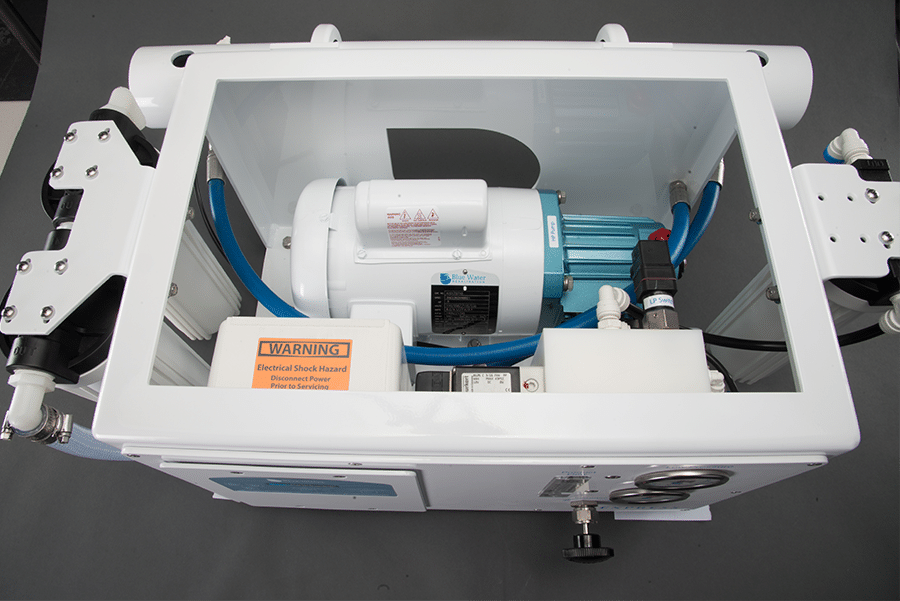

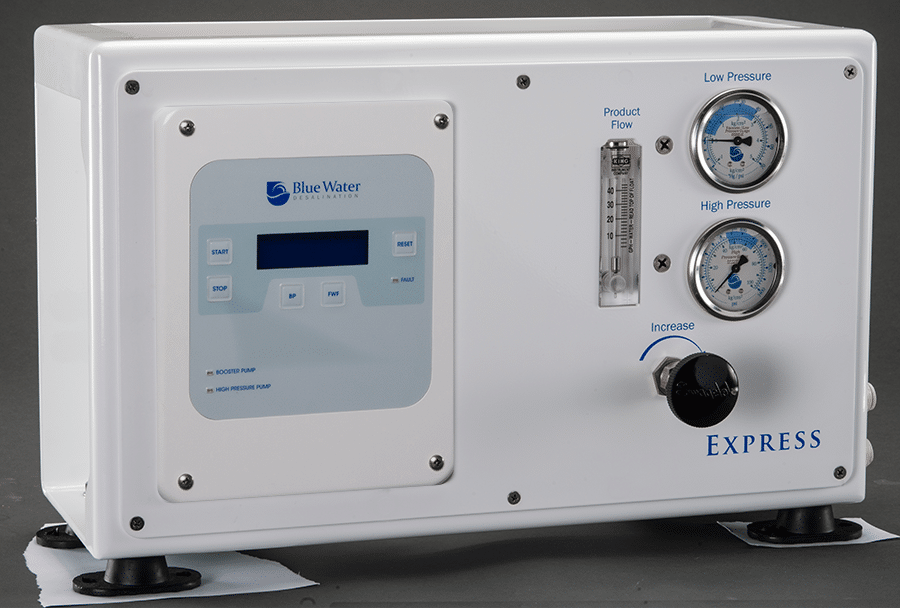

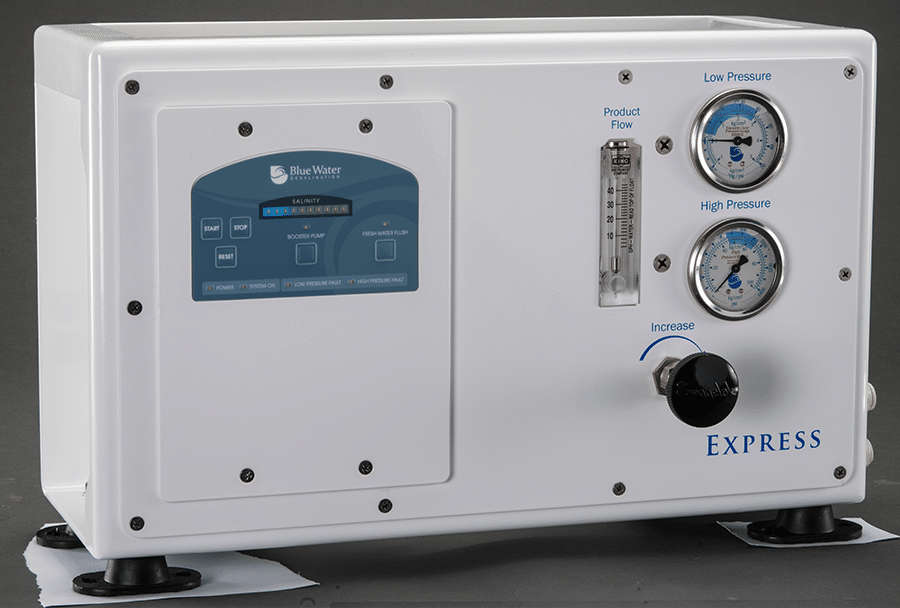

Express Watermaker Frame Only
Express
Frame Only
Express Watermaker Frame Only
Express
Frame Only
Express Watermaker Frame Only
Express
Frame Only
Optional Touchpad Remote
Optional Touchpad Remote
UV Sterilizer
UV Sterilizer

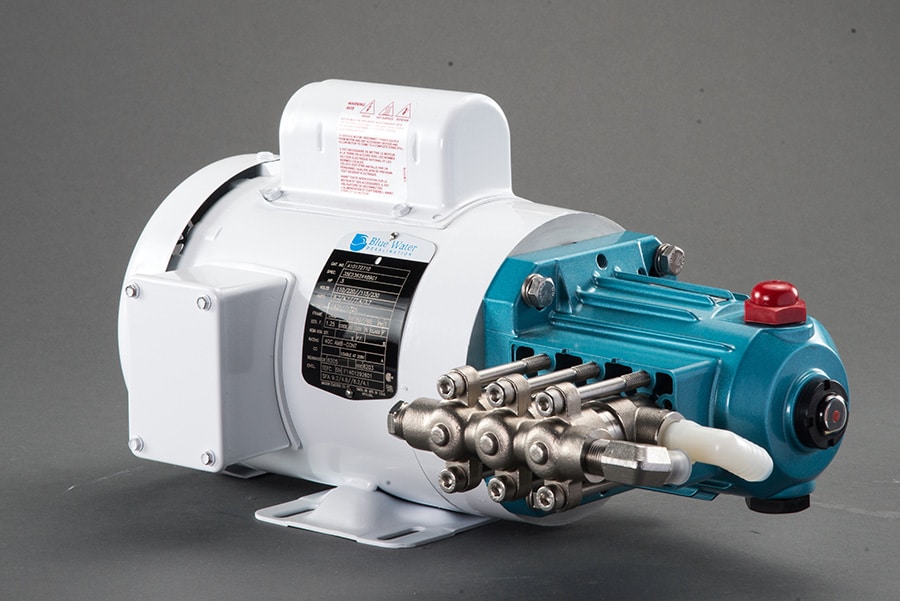

High Pressure Pump
High Pressure Pump
Booster Pump
Booster Pump
Fresh Water Flush
Fresh Water Flush
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses

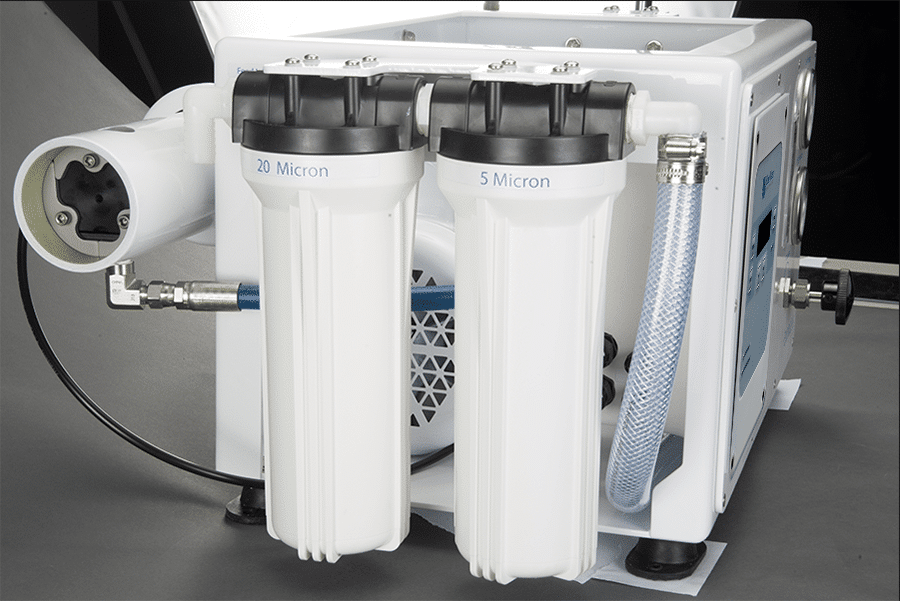

- Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
- Commercial Pre-Filter 20 Micron – Provides step down filtration to extend the life of the primary 5 micron filter
- Oil Water Separator Assembly – Removes oil from feed water
- Media Filter – Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- Touch Pad Remote with Bezel – With 75 ft. cable
- Touch Pad Remote with Bezel – With 100 ft. cable
- Touch Pad Remote with Bezel – With 150 ft. cable
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
| Model # | No. of Membranes | Production / hour | Production / 24 hour | Weight (lbs. / kg.) |
|---|---|---|---|---|
| EXS 360 | 1 | 15 Gal / 57 L | 360 Gal / 1,360 L | 140 / 64 |
| EXS 600 | 1 | 25 Gal / 95 L | 600 Gal / 2,270 L | 160 / 73 |
| EXS 800 | 1 | 33 Gal / 126 L | 800 Gal / 3,030 L | 170 / 77 |
| Model # | Feed Flow GPM |
Booster Pump HP | kW |
HP Pump HP | kW | Run Amps 110V / 220V | Start Amps 110V / 220V |
|---|---|---|---|---|---|
| EXS 360 | 1.5 | 0.5 | 0.37 | 1 | 0.74 | 13A / 6.5A | 72A / 36A |
| EXS 600 | 3 | 0.5 | 0.37 | 2 | 1.47 | 26A / 13A | 94A / 47A |
| EXS 800 | 3 | 0.5 | 0.37 | 2 | 1.47 | 26A / 13A | 94A / 47A |
Express Model Standard Equipment
- Booster Pump (pdf)
- Fresh Water Flush (pdf)
Express Compact
- Express Compact Frame (pdf)
Express Modular
- Express Modular Control Panel (pdf)

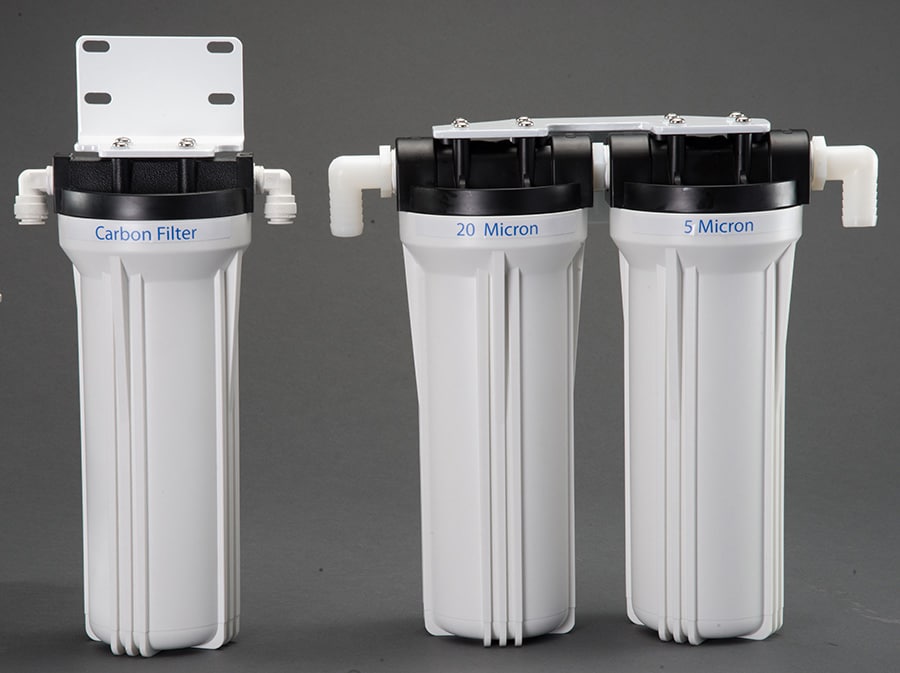

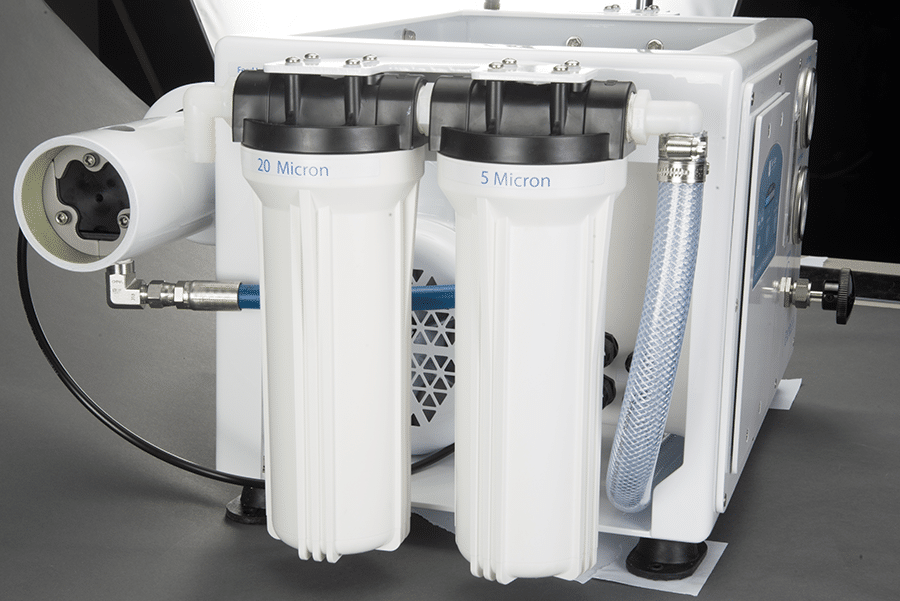

- 10″ Dual 5-20 Micron Filter (pdf)
- 10″ Carbon Filter (pdf)
- 1.5 GPM Pump Motor Assembly for Express 360Â (pdf)
- 3 GPM Pump Motor Assembly for Express 600 & 800Â (pdf)
- 360 GPD Membrane (pdf)
- 600 GPD Membrane (pdf)
- 800 GPD Membrane (pdf)
Express Model Optional Equipment
